Feeler Gauges for Tight and Hard to Reach Places

The ARES 2-piece feeler gauge set includes two types of feeler gauges. The straight gauge has 32 straight blades, and the offset gauge has 16 blades with an offset design that’s great for awkward areas. Each blade is marked with both metric and SAE sizing, and each set folds neatly into itself for easy transportation and storage. These gauges let you measure tappet clearances, spark plug gaps, bearing clearances, piston ring gaps and more.

Features:

• Includes: 2 pc. Feeler gauge tools

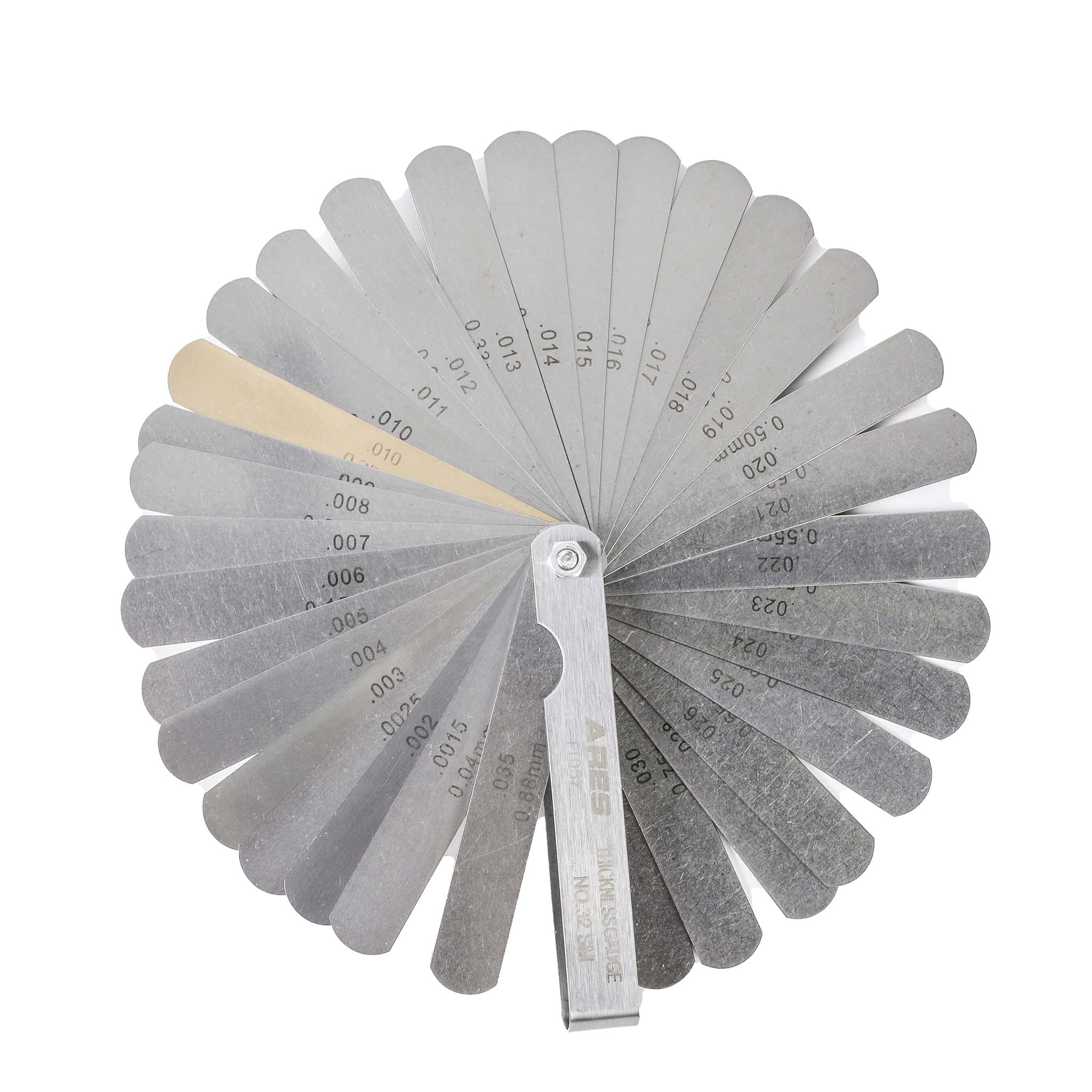

• Straight Gauge Sizes: Inch - 0.0015, 0.002, 0.0025, 0.003, 0.004, 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.010, 0.011, 0.012, 0.013, 0.014, 0.015, 0.016, 0.017, 0.018, 0.019, 0.020, 0.021, 0.022, 0.023, 0.024, 0.025, 0.026, 0.028, 0.030, 0.032, 0.035 (Metric - 0.04mm, 0.05mm, 0.06mm, 0.08mm, 0.10mm, 0.13mm, 0.15mm, 0.18mm, 0.20mm, 0.23mm, 0.25mm, 0.25mm, 0.28mm, 0.30mm, 0.33 mm, 0.35mm, 0.38mm, 0.40mm, 0.43mm, 0.45mm, 0.48mm, 0.50mm, 0.53mm, 0.55mm, 0.58mm, 0.60mm, 0.63mm, 0.65mm, 0.70mm, 0.75mm, 0.80mm, 0.88mm)

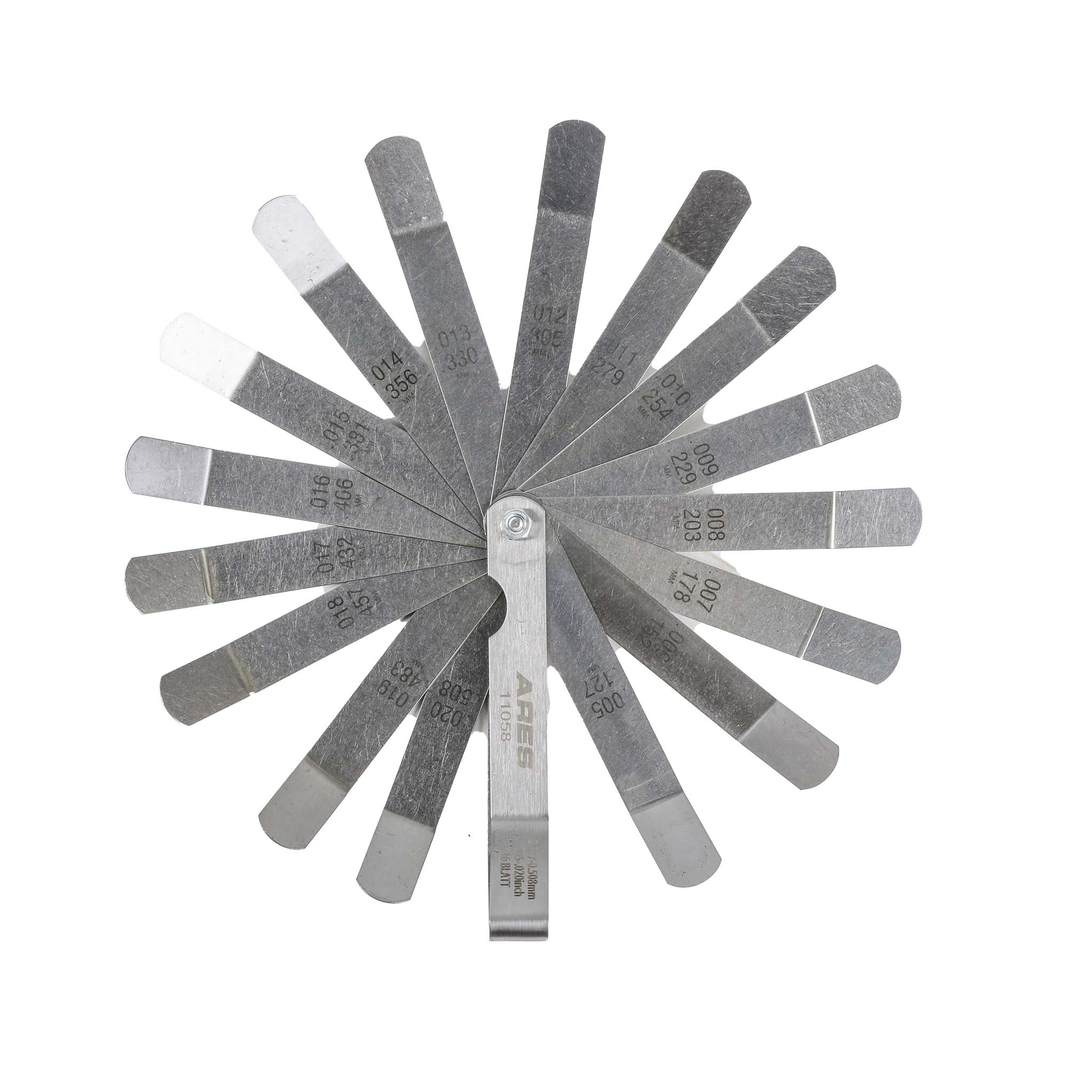

• Offset Gauge Sizes: Inch - 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.011, 0.012, 0.013, 0.014, 0.015, 0.016, 0.017, 0.018, 0.019, 0.020-Inch (Metric - 0.127mm, 0.152mm, 0.178mm, 0203mm, 0.229mm, 0.254mm, 0.279mm, 0.305mm, 0.330mm, 0.356mm, 0.381mm, 0.406mm, 0.432mm, 0.457mm, 0.483mm, 0.508mm)
• Durable steel construction
• Folding gauges are easy to store and transport

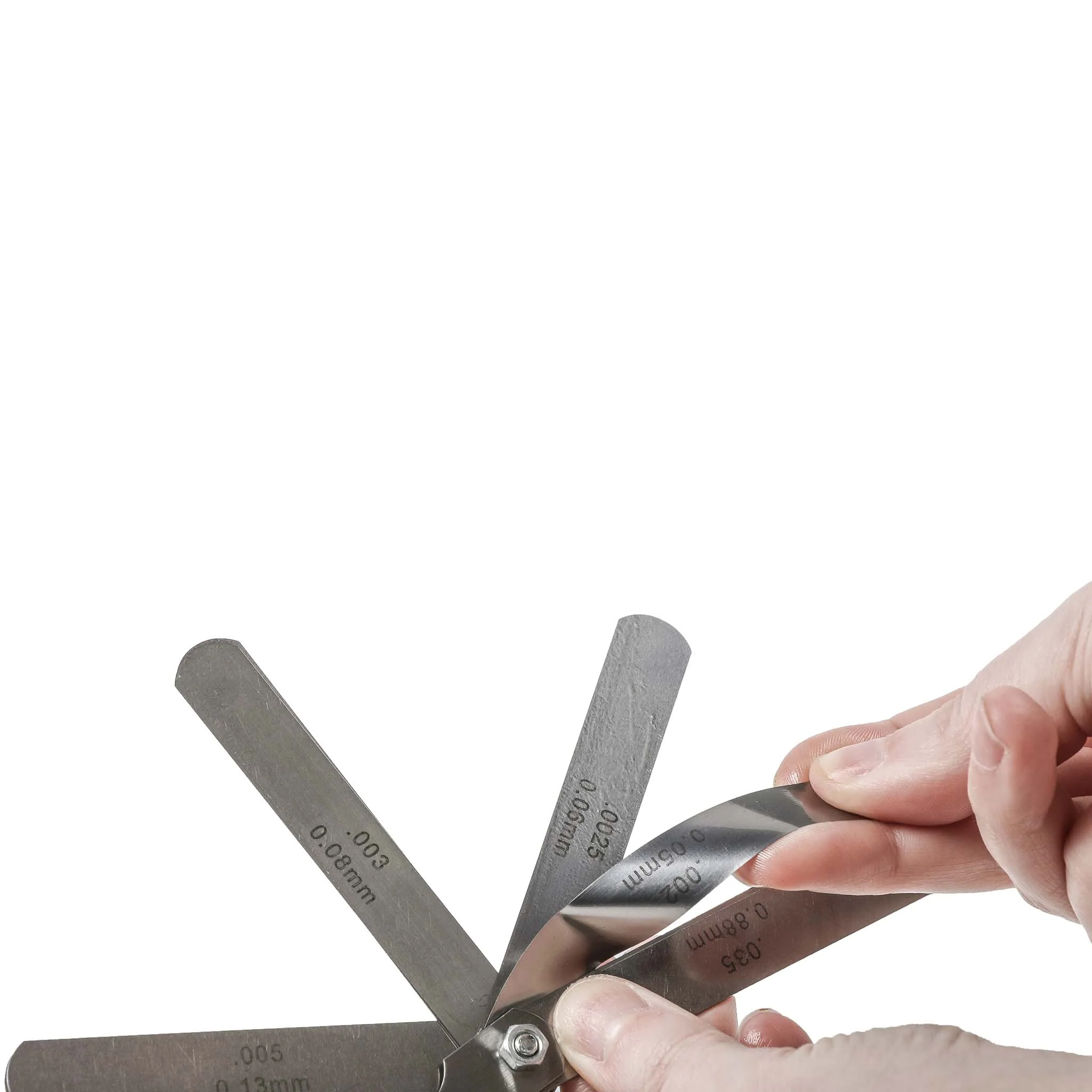

• Each blade features metric and SAE size markings
• Offset tips ideal for difficult-to-access areas

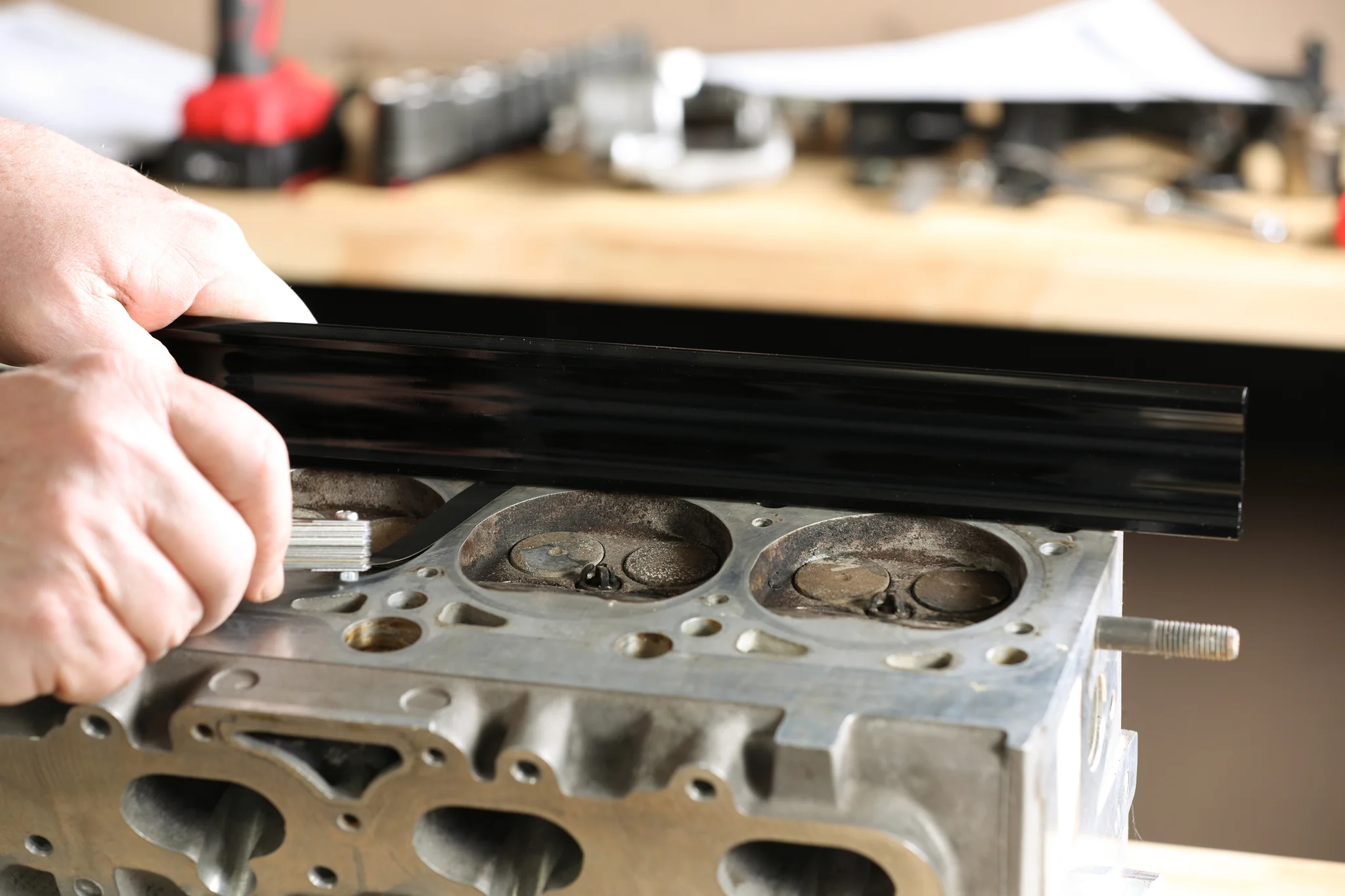

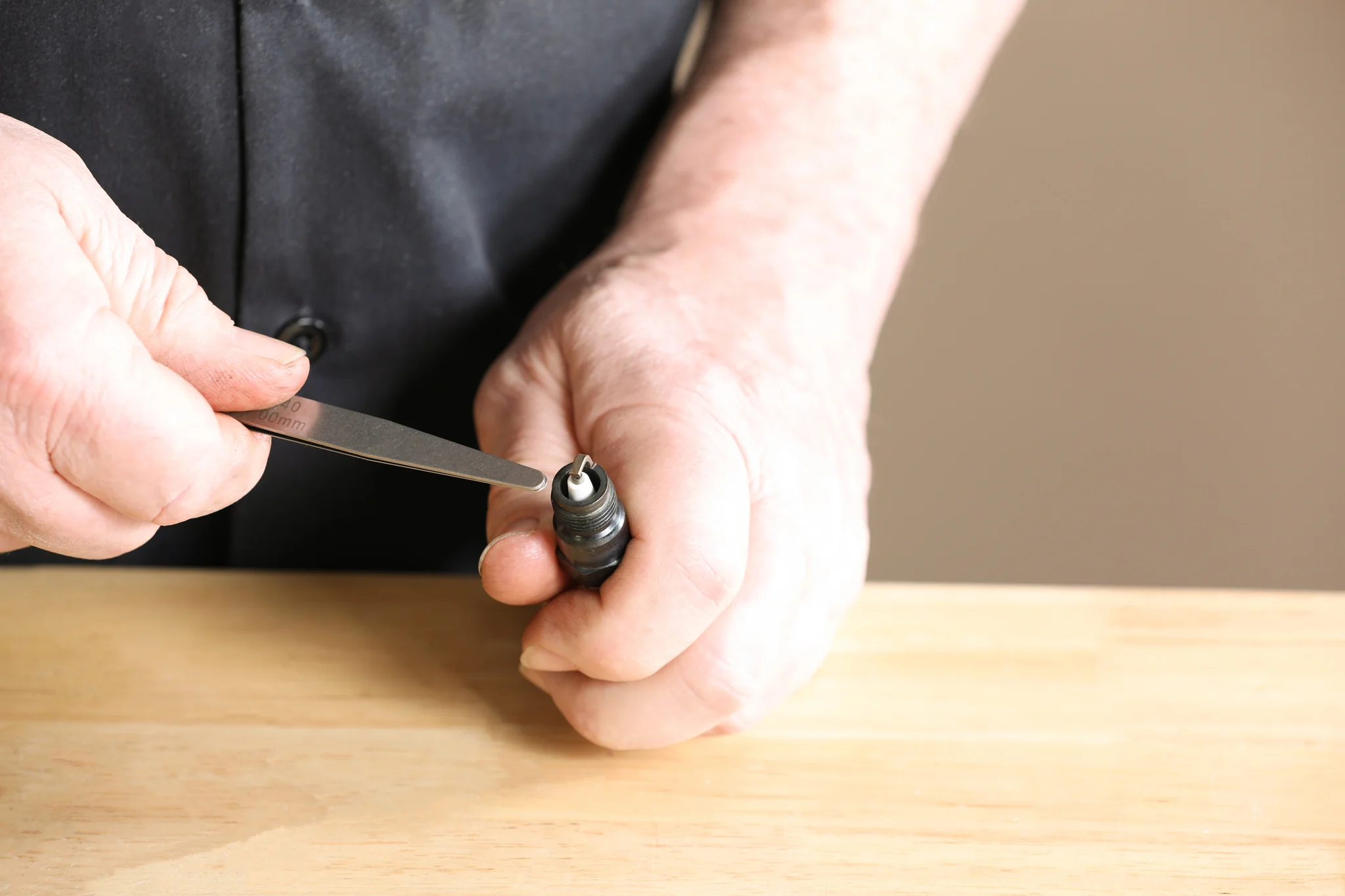

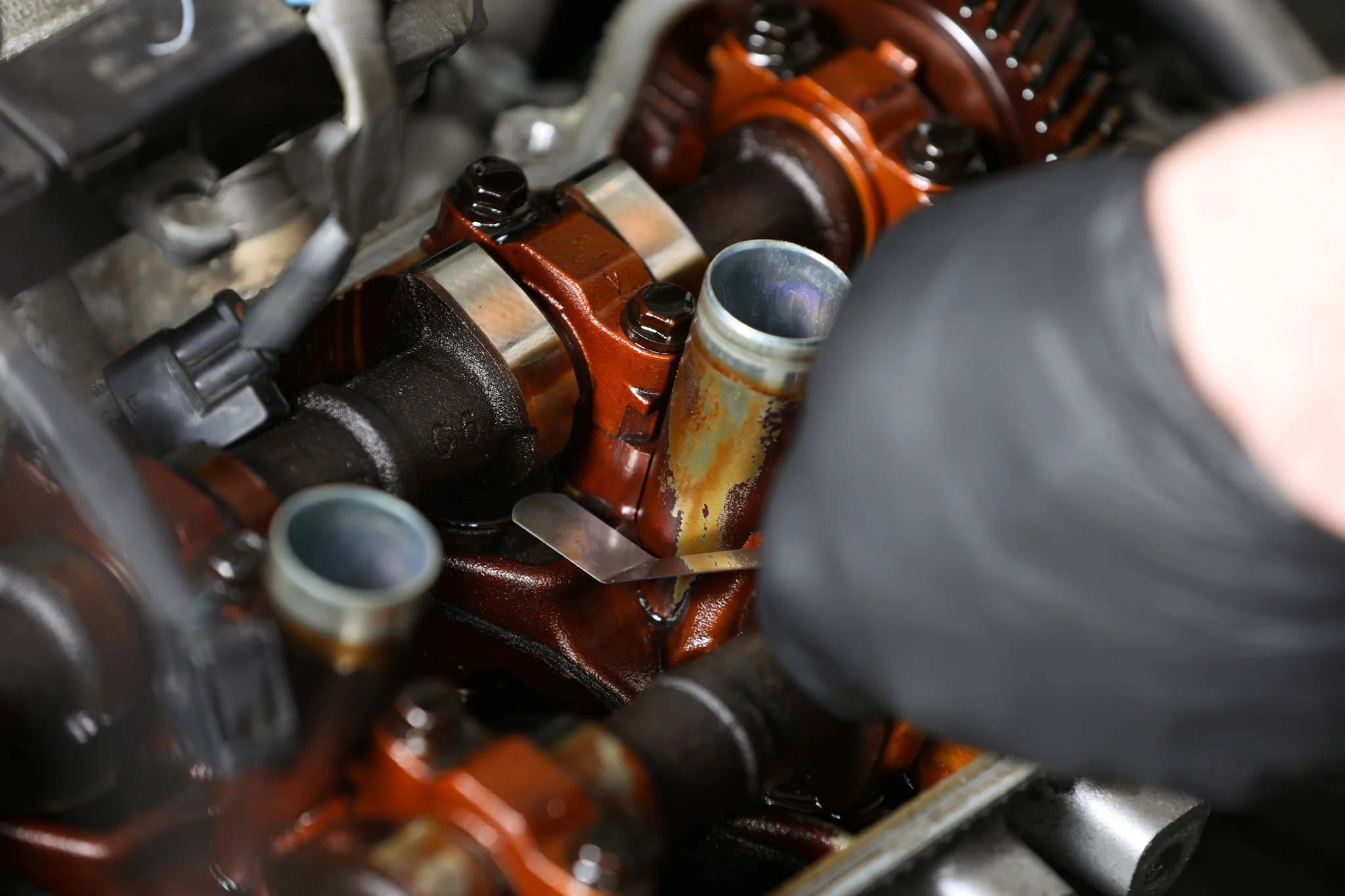

• Measure tappet clearances, spark plug gaps, bearing clearances, piston ring gaps and more.
